Rotation advancement flap—a novel technique for breast conserving surgery in tumors of the upper lateral breast quadrant

Introduction

Focus on patient’s quality of life and advances in oncological treatment of breast cancer have dramatically changed the paradigm of surgical treatment of breast cancer. Contemporary breast surgery has to provide not only with a radical surgery with good margins, but also with the best aesthetic result possible. These principles have been successfully implemented in oncoplastic breast conserving surgery and numerous studies have shown oncological safety of these techniques and high patient satisfaction (1,2).

In the era of precise diagnostics and improved tumor mapping, oncoplastic techniques are considered as safe as the classical wide local excision and, therefore, become a standard approach in breast centers worldwide. A great number of surgical techniques have been recently described for tumors of different locations (3-6).

Methods

In the current paper we propose a novel modification of an oncoplastic technique for breast tumors located in the upper-lateral quadrant. The aim of this method is a complete preservation of breast size and shape by a full compensation of the defect after tumor removal. For this purpose two principles may be utilized—flap rotation and advancement. Rotation advancement flap is a modification where a wide rotation flap from the lateral part of the breast is used along with a tissue complex from the axillary region. The point of rotation is the nipple-areolar complex (NAC).

Preoperative markings are made according to the natural borders of the breast, lateral borders of mammary fold and areola. After the tumor borders are delineated, the area of removal is marked with two radial (or close to radial) lines along the upper medial (B, D) and lower lateral (A, C) borders of the tumor (Figure 1). The upper limit of the incision is marked horizontally, preferably according to the breast folds, and is extended to the axillary region along the curvature of the line DCEF. An area that equals the width of the area to be removed is marked on the line EF, from its intersection (point E) with the lateral mammary fold (EF = DC). In such way an upper lateral point is defined—upper border of a new lateral mammary fold. Finally, point F is smoothly joined with the lower lateral mammary fold level (G). Having done that, one has delineated the tumor area to be removed (A, B, D, C) as well as the lateral advancement flap (A, C, F, G) on a wide base. With this manoeuvre the removed area with the tumor (A, B, D, C) is compensated with the tissue from axillary region (G, F, E). Circumareolar mobilization of nipple-areola complex should be performed to minimize defects and changes of breast and areola shape.

Figure 1 Preoperative markings, described in the text.

During the flap advancement, a rotation (not a linear tissue transfer) is performed with the NAC being the point of rotation (Figure 2). This principle is very close to a technique described in B-plasty (7). A wide mobilization of the parenchyma from the fascia is performed to obtain more natural position of the breast. It is crucial to identify and preserve the perforator vessels from aa. intercostales as well as the branches of a. thoracica lateralis (Figure 3) which should provide with an adequate blood supply to the flap and the rest of the parenchyma.

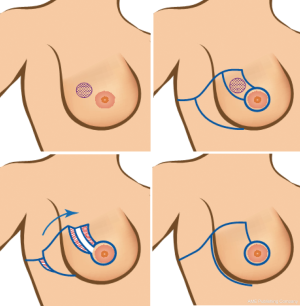

Figure 2 Incisions and surgical planning, described in the text.

Figure 3 Tissue mobilization, identification and preservation of the vessels supplying the flap and breast parenchyma.

After a new position of NAC is defined (Figure 4), it is important to close the dead space with tight sutures in parenchyma, which protects the breast from unanticipated deformity, especially after radiotherapy. A round block mobilization of the nipple-areola complex is required to achieve a greater rotation. The wound closure is performed in a sitting position of the patient. An attention should be paid to a new lateral contour of the breast that has to correspond the natural position. This could be obtained by a wider mobilization (at GF level) and fixation to the chest wall as well as to the lateral part of the flap.

Figure 4 Patient case: preoperative, marking, intraoperative and postoperative (9 months) photos. Weight of specimen—198 g.

In some cases, an excessive tissue in the region of the distal edge of the wound (H point) should be excised. Axillary dissection usually does not affect operation planning or flap design, however, an extra effort should be taken to identify and preserve a. thoracica lateralis which is a flap supplying vessel.

Results

Between July 2013 and June 2017, 33 surgeries with the described technique were performed at the Breast Unit of LISOD Israeli Cancer Care Hospital. The mean age of the patients was 51 years (range, 33–69 years). Mean specimen weight was 113.5 g (range, 36–268 g), tumor size—26 mm (range, 10–50 mm). Six patients (18.2%) received neoadjuvant chemotherapy.

Sentinel lymph node biopsy (SLNB) was performed in 25 (75.8%) and axillary dissection in 12 (36.4%) patients. In non-palpable lesions (8/33, 24.2%), a fine needle localization with mammographic verification (n=5), radioguided occult lesion localization (n=2) or intraoperative ultrasound verification (n=1) were utilized. Involved margins were found in one (3.0%) case and the patient opted for a nipple-sparing mastectomy with immediate implant reconstruction. All patients but one received external beam postoperative radiotherapy in BED 50 Gr/25 fractions, 18 (54.5%) received adjuvant chemotherapy and 9 (27.3%) endocrine therapy.

Breast cancer stage distribution is presented in Table 1.

Complications occurred in 7 (21.2%) patients: hematoma (n=2, including one requiring revision), cellulitis (n=3, conservative treatment), and wound edge necrosis (n=2, revision).

Notably, this technique was used in a patient after previous breast augmentation. With the breast implant preserved, a block of tissues from the axillary region was transferred to compensate the partial breast defect with an excellent aesthetic result (Figure 5).

Figure 5 Patient with a previous augmentation, tumor in left breast. Preoperative photos before neoadjuvant chemotherapy, marking, postoperative photos after 8 months. Weight of specimen—64 g.

The proposed technique could be also utilized to correct secondary breast defects, e.g., following radiotherapy. Thus, one patient received a reconstruction following excision of a late (>2 years) radiation sequella (Figure 6). A marginal necrosis of the flap, however, was seen in the early postoperative period, which required revision surgery and debridement. The wound healed primary, but the late deformity of the gland was formed. We suggested the patient correction of the deformity with the symmetrizing reduction mammaplasty and lipografting, but the patient refused.

Figure 6 Patient with radiation-induced soft tissue changes 8 months after radiotherapy. The use of rotation advancement flap after the revision. Weight of specimen—136 g. Wound edge necrosis requiring revision. Final result after 6 months.

Thirty two (97%) patients were available for follow up, on average 29 (range, 6–48) months postoperatively. Follow up included clinical examinations every 3–4 months, ultrasound every 6 months and mammography every 12 months.

No loco-regional recurrence was registered, whereas distant metastases were revealed in 2 (6.1%) patients with clinical manifestations and confirmed with CT; 1 (3%) patient succumbed to breast cancer.

Discussion

The upper-lateral quadrant is one of most frequent locations of breast cancer (8-10). Partial mastectomy in this area is considered a relatively easy task for breast surgeons. Wide local excision with free margins with a good aesthetic result is achievable in cases of smaller tumors in large breast (C-D cup). Otherwise (i.e., larger tumor/smaller breast) it is often challenging to avoid a typical breast deformity such as deviation of the NAC and volume deficit of the lateral breast contour (Figure 7). It happens due to the loss of volume in the upper-lateral quadrant, which is typically compensated by the linear advancement of parenchyma of the lower part of the breast. This could often lead to NAC displacement from its geometric center and the volume of the gland inevitably decreases (Figure 7). Several methods have been proposed to prevent this distortion (Table 2).

Figure 7 Example of breast deformity following regular wide local excision in the upper-lateral quadrant.

Inferior flap mammaplasty, or a modified Ribeiro technique allows achieving a very good aesthetic result (11). However, both shape and size of the breast may change significantly, which frequently requires a symmetrizing procedure. In our practice, the patient’s anxiety for the cancer operation is often greater than the concerns regarding the aesthetic results, so patients are reluctant to/postponing symmetrizing procedures. Based on this, the methods of choice at our institution are the rotational flap and the lateral thoracical flap.

When using a rotational flap, a sector of the parenchyma with the tumor is removed to the full depth—from the skin and to the fascia of the m. pectoralis major. Then, the parenchyma is mobilized in the retromammary space, with the cutting of the skin along the submammary fold. It is also required to mobilize the NAC with a circular cutting of the dermis around the areola. Thus, we form a rotational flap from the lower sector of the gland and advance it to close the defect around the nipple. Nipple is the point of rotation. This maneuver preserves the shape, prevents deformations of the lateral part of the breast and ensures the full filling of the parenchymal defect. Nevertheless, the volume of the breast decreases, because the tissue of the gland is redistributed (Figure 8).

Figure 8 Patient case using rotational flap: preoperative, intraoperative and postoperative (24 months) photos. Weight of specimen—60 g.

The lateral thoracic flap is an effective and useful method to address the defects in the lateral part of the breast. Holmström et al. initially suggested this technique as a simple method for implant coverage and volume deficits in delayed reconstruction (12,13). Munhoz et al. described this technique to close defects of the lateral sector of the breast in oncoplastic breast-conserving surgery (14). A similar technique was later published by Koh et al. where a skin-fascial flap from the axillary region on a wide base was used to fill the defect after tumor removal (15). This region has no aesthetic significance, and the quality of the skin and subcutaneous tissue here are very similar to those in the mammary gland (Figures 9,10).

Figure 9 Patient case using a lateral thoracic flap with upper base: preoperative, marking and postoperative (48 months) photos. Weight of specimen—86 g.

Figure 10 Patient case, a lateral thoracic flap with a lower base: preoperative, marking and postoperative (1 month) photos. Weight of specimen—52 g.

The rotation advancement flap may help to achieve a better aesthetic result, because it differs from the previously discussed techniques by using the natural boundaries of the gland and natural point of rotation (NAC). This technique can be effectively used for tumor located in upper-lateral quadrant of the breast, for different sizes of the breast—small (Figures 11,12), medium (Figure 13) and large (Figures 14,15). Sometimes it allows removing the bigger amount of tissue, e.g., in case of local recurrence (Figure 16). The following case is also noteworthy because it allows to compare different techniques—previously done wide local excision on the left side and our type of surgery on the right side.

Figure 11 Patient case: preoperative, marking and postoperative (36 months) photos. Weight of specimen—49 g.

Figure 12 Patient case: preoperative, marking and postoperative (9 months) photos. Weight of specimen—36 g.

Figure 13 Patient case: preoperative, marking and postoperative (12 months) photos. Weight of specimen—72 g.

Figure 14 Patient case: preoperative, marking and postoperative (6 months) photos. Weight of specimen—102 g.

Figure 15 Patient case: preoperative, marking and postoperative (12 months) photos. Weight of specimen—138 g.

Figure 16 Patient with local recurrence after bilateral wide local excision (performed elsewhere). Preoperative photos before neoadjuvant chemotherapy, postoperative photos after 17 months. Weight of specimen—268 g.

It is efficient even when the tumor is located in the upper sector of the breast (Figure 17).

Figure 17 Patient case with the rotation advancement flap, tumor in the central cranial part of the breast: preoperative, marking and postoperative (4 months) photos. Weight of specimen—94 g.

The complexity of this procedure is intermediate. It could be done by surgeons familiar with the therapeutic mammaplasty but not with island perforator flaps, such as LICAP or TDAP. Due to the wide base of the flap, a total flap necrosis is unlikely but partial marginal necrosis may occur due to aggressive tissue mobilization with the damage of the perforator vessels. We consider the proposed method more reliable and safe compared to the perforator island flap techniques, a consideration for younger surgeons. On the other hand, this technique has several disadvantages. These include the visible scars in the upper outer part of the breast (yet not in the décolleté area). Further, in larger tumors or in those located below the NAC level, this technique may cause a breast deformity (such as shown on Figure 14), which, however, can be corrected by fat grafting. Finally, like in any other type of breast conserving surgery, there are some reservations for the postradiation changes in the breast shape after rotation advancement flap procedure.

Our first experience with this method has been previously presented at the ESSO congresses (16,17) and the ORBS meeting (18).

Conclusions

We have proposed a novel technique of the rotation advancement flap in breast conserving surgery. This technique is reliable and allows correcting the deformities and significant volume loss. It may provide with an excellent aesthetic result and is considered a safe alternative (transition procedure) to more complex operations as island perforator flaps.
