Machine learning techniques for breast cancer diagnosis and treatment: a narrative review

Introduction

Cancer is one of the major health problems, and 19.3 million new cases of cancer and almost 10 million deaths from cancer are estimated worldwide for 2020 (1). Among females, breast cancer is the most commonly diagnosed cancer with an estimated 2.3 million new cases, followed by colorectal and lung cancer in incidence, and vice versa in mortality (1). Among females in the United States, breast cancer is the most diagnosed cancer and the second cause of death among most of the cancer types in 2021. However, there is concern regarding the underestimation of new cases because of the coronavirus disease 2019 (COVID-19) pandemic (2). The development of new technology for automatic screening is needed for the early detection and treatment of breast cancer.

With advances in technology, the recent rapid increase in computational resources has yielded high-dimensional data, whereby accurate diagnosis and prediction of the prognosis and treatment outcome of breast cancers are possible. The capability of imaging breast lesions through techniques such as mammography (MMG), ultrasonography (US), and magnetic resonance imaging (MRI) contributes to characterizing the malignant region(s), which provides information complemental to biopsies for definitive diagnoses (3). Molecular-based profiling data, such as transcriptomics, proteomics, and metabolomics, have also been accumulated using omics technologies, and these data help decipher the molecular pathways dysregulated in breast cancer (4). To exploit the clinical utility and to understand tumorigenesis and progression of breast cancer from these types of big data, sophisticated computational analyses are necessary in addition to conventional statistical approaches.

As a computational analytical methodology, machine learning (ML), one of the branches of artificial intelligence (AI), has been implemented to analyze these data, for which there exist unsupervised and supervised methods. Unsupervised methods involve the extraction of repeatedly observed or implicit features without a pre-definition of the expected results. The clustering technique is one example thereof and is frequently employed in the analysis of quantitative omics data, such as the subtype-specific expression patterns of transcriptome data. Supervised methods, on the contrary, mimic given results by combining the observed features. Various ML methods have been used for this purpose, such as the artificial neural network (ANN), support vector machine (SVM), naïve Bayes algorithm, random forest (RF), and decision tree. Approximately 3,000 papers have been published in this area in the last five years (2015–2019) (5) owing to publicly available databases such as the Wisconsin Breast Cancer Database and Breast Cancer Coimbra Data Set, which have been repeatedly used for the development and validation of new methods (6,7). The benchmark tests to compare the prediction performance of ML methods have been reviewed using various datasets (8-10).

Image processing technologies have been improving rapidly and significantly, particularly the use of deep neural networks (DNNs) and convolutional neural network (CNN). The applications of ML for image processing have been frequently reviewed and are a topic of high research interest (11-16). A large-scale database including histopathological images of breast cancer is publicly available for these analyses (17). A combination of supervised and unsupervised CNN has been used for histopathological data (18). DNNs have been also employed in breast cancer risk assessment using whole genomic data (named polygenic risk scores), a technique that has been also well-reviewed (19,20).

Thus, image processing is currently a hot topic in breast cancer diagnosis; therefore, various review papers are already available. This manuscript provides a review of the application of ML to the other types of data, especially for clinical-pathological features and quantitative molecular profiles. We present the following article in accordance with the Narrative Review reporting checklist (available at https://abs.amegroups.com/article/view/10.21037/abs-21-63/rc).

Methods

Information used to write this paper was collected from PubMed and Google Scholar.

Clinical-pathological feature-based prediction

Index

Combinations of clinical-pathological features have long been used to assess diseases and treatment responses in patients. For this purpose, the Nottingham prognostic index (NPI) was developed in 1982 (21) and involved three factors, namely tumor size, stage of the disease, and tumor grade, to predict the prognosis of primary and operable breast cancers (22). This index has been frequently validated and widely employed in the prognosis of breast cancer (23). Various other factors, such as the vascular endothelial growth factor (VEGF), are prognostic factors independent of the NPI for patients with node-negative breast cancers (24,25). Lymphovascular invasion (LVI) and progesterone receptor (PgR) were also proposed as factors independent of NPI to predict the prognosis (26,27). Thus, the NPI cannot reveal the entire clinical and survival outcome of breast cancer heterogeneity, and a new index incorporating molecular-based biomarkers was developed. The Nottingham prognostic index plus (NPI+) was developed using an ANN to combine a large number of molecular expression levels in a non-linear manner (28). This approach has improved the predictive ability of each clinical-pathological feature, considering their complex and non-linear relationship.

Nomogram

The ability to visualize the relationships among the quantitative effects of each observed feature on the outcome would aid the decision-making process when selecting the treatment mode. Adjuvant! Online was first developed for this purpose (29). This graphical web tool visualizes the risk of cancer-related mortality or relapse without therapy and the reduction in risk with therapy. However, it is limited on several counts; for example, the human epidermal growth factor receptor 2 (HER2) status was not included. As similar approaches, various nomograms have since been developed to combine the predictive effect of each feature linearly. In this regard, PREDICT was developed in the United Kingdom to predict the overall survival and treatment effect of systemic therapy in patients with primary breast cancer using the factors of age, menopausal status, disease stage, estrogen receptor (ER), HER2, and Ki-67 labeling index (Ki-67) (30). Similar to Adjuvant! Online, PREDICT has been well-validated. Subsequently, Rouzier et al. developed two nomograms to predict the residual tumor size and the applicable probability of conservative surgery after neoadjuvant chemotherapy (31).

In addition, nomograms for specific subtypes of breast cancer have been developed, such as for triple-negative, i.e., ER/PgR-negative and HER2-negative (32,33) as well as ER/PgR-positive and HER2-negative patients (34). Recently, a systematic review was published, evaluating a total of 58 mathematical prediction models for disease prognosis (35). Most of these models utilized Cox proportional hazards regression to predict mortality, recurrence, or both, and they were calibrated using the C-index or the area under the receiver operating curve (AUC). Moreover, nodal status, tumor size, tumor grade, age, and ER status were included as parameters. However, only 17 of the 58 models were validated in independent populations (i.e., external validation).

Some of these nomograms, validated previously, were used to aid the prognosis estimation. To enhance the generalization ability of the model, that is, the ability of the model to work accurately with independent data not included in the model development, independent minimum variables sets are usually selected (36). Thus, only a few variables can be incorporated into a single nomogram, which limits the accounts of heterogeneity as well as the accuracy of the predictions (Figure 1A).

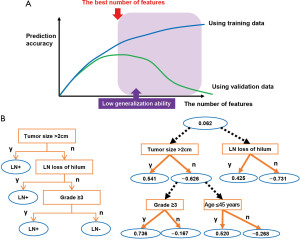

Figure 1 The machine learning method using clinical-pathological features. (A) The relationship between the prediction accuracies and the number of features used for the prediction model. The prediction accuracies using training data increase along with the number of features uses, whereas those using validation data show a peak. The number of features at this peak should be selected to enhance the generalization ability of the model. (B) Examples of tree-type algorithms. Conventional decision tree (left) and alternative decision tree (right). LN, lymph node.

Machine learning methods

ML methods can potentially enhance observable variables that predict outcomes, e.g., prognosis, diagnosis, and treatment sensitivity, by combining them in complicated structures. The objective of each method is to attempt to explore underlying data patterns and the relationship among the data, which would contribute to realizing accurate predictions. Various supervised ML methods have been used for this purpose.

The pathological complete response (pCR) of neoadjuvant chemotherapy (NAC) was predicted using various types of classification methods, such as the RF, naïve Bayes algorithm, SVM, and ANN; a cross-validation-based accuracy comparison concluded that RF yielded the best performance (37). An alternative decision tree (ADTree) was used to predict the pCR of NAC of patients with primary breast cancers (38) (Figure 1B). A prediction model was developed using training data collected from three institutions including Tokyo Metropolitan Cancer and Infection Diseases Centre Komagome Hospital, Osaka National Hospital, and Tsukuba University Hospital with cross-validation as a means of internal validation. The developed model was evaluated using independent validation data collected from the Organisation for Oncology and Translational Research (OOTR) N003 which is a randomized trial of patients with operable breast cancer treated with docetaxel with or without capecitabine after four cycles of NAC consisting of 5-fluorouracil, epirubicin, and cyclophosphamide (FEC) (UMIN ID: C000000322, http://www.umin.ac.jp/ctr/index.htm) (Figure 2A).

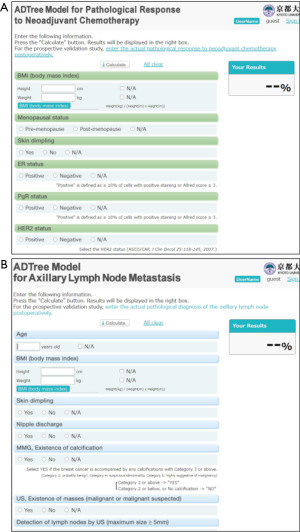

Figure 2 Web site to predict the response of neoadjuvant chemotherapy (A) and axillary lymph node metastasis (B) of primary breast cancer. http://www.brca.jp/index.html. The account is issued upon request to the corresponding author. ADTree, alternative decision tree.

ADTree-based prediction model also predicted the metastasis of the axillary lymph node in patients with breast cancer who had not received prior treatment (39). The training data included the breast cancer patients from the Tokyo Metropolitan Cancer and Infectious Diseases Centre Komagome Hospital and Kyoto University Hospital, whose maximum tumor size was ≤4 cm. The independent validation data was collected from Seoul National University Hospital, Korea, and consisted of the patients who underwent sentinel lymph node (SLN) biopsy and met the same eligibility criteria as the modeling dataset (Figure 2B).

ADTree model was also used to predict the disease-free survival (DFS) and brain metastasis in patients with HER2-positive breast cancer who had received NAC plus trastuzumab in the Japan Breast Cancer Research Group (JBCRG)-03 study (40,41). These models involve an ensemble technique, whereby multiple prediction models can be developed and their predictions can be integrated to enhance the prediction accuracies. Notably, this method also showed robustness against missing values (42,43).

Quantitative omics data analysis

Commercially available gene expression analyses

Traditionally, transcriptional data based on gene expression have been analyzed. However, in recent times, other various omics data, such as proteomics and metabolites, have also been simultaneously analyzed to understand the molecular-based heterogeneity of cancers (44). The clinical utilities of several gene expression profiling tools such as Prediction Analysis of Microarray 50 (PAM50)^® (45), MammaTyper^® (46), MammaPrint^® (47), Oncotype DX^® (48), Endopredict^® (49), and Genomic Grade Index^® (50) have already been well-validated, and these tests are commercially available and widely used in clinical practice (51).

For example, MammaPrint^® is an FDA-approved test for in vitro diagnostic multivariate index assays. This test previously involved the use of frozen samples, whereas it currently involves formalin-fixed, paraffin-embedded (FFPE) blocks for the analysis of 70 gene signatures using a microarray (52). Notably, this test showed better prognosis prediction ability than that of Adjuvant! Online (53). In MINDACT (a prospective study), patients with ER-positive disease, who were at high clinical risk as defined by Adjuvant! Online and low genomic risk as defined by MammaPrint, showed an excellent prognosis without having received chemotherapy (54). Oncotype DX^TM extracts RNA from FFPE blocks and quantifies 21 gene profiles via RT-PCR (55). The 21 genes include 16 tumor-related and 5 reference genes for the prediction of the recurrence score (RS). This test was validated via tamoxifen-treated breast cancer patients with ER+/node-negative and showed a significantly different prognosis among high- and low-risk groups (48). Validation via these patients also showed prognostic value (56), and the test showed the predictive ability for the case of adjuvant therapy of tamoxifen + chemotherapy for breast cancer patients with ER+/node-negative (57). The clinical utility of Oncotype DX^TM was evaluated in large prospective trials. In the TAILORx trial, adjuvant endocrine therapy and chemoendocrine therapy showed similar efficacies in patients with RS of 11–25 (58). In another study, PAM50 was used to analyze 50 gene expression profiles to classify breast cancer into intrinsic subtypes (45). MammaPrint involved the use of profiles of 70 gene expressions for prediction of recurrence (59) and PAM50 involved clustering to calculate the distance of gene expression patterns for evaluation of the distances among the given and intrinsic subtypes (60). All these assays utilized relatively simple data analytical methods, such as multiple logistic regression (MLR) and clustering.

Multi-gene assay with ML

To consider more complex relationships among genes, ML methods have been used instead of the aforementioned established methods. The genes considered for PAM50 on RNA-sequence data were also analyzed via ML methods for evaluating the similarity among the given data and pre-defined subtypes. Moreover, CNN (Figure 3A) was used to analyze gene expression profiles collected from The Cancer Genome Atlas (TCGA) database (61); DNNs were used to explore the subtype-specific expression pattern, whereby six new subtypes of triple-negative breast cancer were found (62).

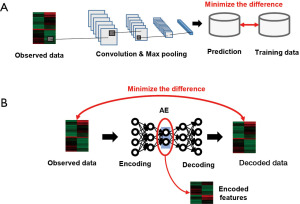

Figure 3 ANN-based data analysis of high-dimensional data, e.g., microarray gene expression. (A) A typical supervised learning method. CNN tries to predict a phenotype, e.g., good/poor prognosis, from observed data. The CNN evaluates the difference between the prediction and training data and tries to minimize this difference. (B) A typical unsupervised method. AE tries to produce lower-dimensional features from the observed data (encoding) and also reproduces the original data from the encoded features (decoding). AE tries to minimize the difference between the observed and decoded data. AE, autoencoder; ANN, artificial neural network; CNN, convolutional neural network.

It should be noted that there exist several difficulties in analyzing high-dimensional gene expression data. For example, various genes show positive correlations (multi co-linearity among the observed features), which prevent important genes with higher effects on the other molecules from being found. Instead, network analyses are used to visualize their relationship using quantitative criteria between two genes, including the correlation of expression profiles (in most cases) to explore hub genes (63). The edges of the gene co-expression network have been used as features to predict the metastasis of breast cancer (64). Through co-expression networks and clustering, the hypoxia-related dysregulation of mRNA and microRNAs were identified using the TCGA database to predict the breast cancer prognosis (65). Moreover, intra-chromosomal and inter-chromosomal interactions among genes were analyzed for each subtype to understand the subtype-specific imbalance of these relationships (66).

These networks are frequently categorized as scale-free networks that sometimes do not yield independent multiple clusters (67). Another drawback is that the constructed network is sensitive to the threshold pre-defined by analysts, and more robust methods needed to be developed. To solve these problems, the weighted gene correlation network analysis (WGCNA) that implements the soft-threshold has been developed, and this method yielded independent clusters and robust analytical results (68,69). The WGCNA was then explored to find hub genes that possess different biological functions to predict the breast cancer prognosis (70), and it was also used to find independent hub genes to predict breast cancer of the triple-negative subtype (71). Although these results should be validated using various datasets during the comprehensive molecule profiling, these analytical methods do contribute to the determination of independent features to characterize breast cancers.

Another approach for microarray data analysis is dimensional reduction, involved in techniques such as principal component analysis (PCA). This method does not identify a single molecule but instead enables the extraction of gene patterns that contribute to discriminating the defined phenotypes. For example, the combination of PCA and PAM50 was used for subtyping breast cancers, and consistent subtype-specific gene clusters were yielded in multiple datasets (72). The autoencoder (AE) (Figure 3B), a substream of an ANN, is another dimension reduction method part of which prominent lower-dimensional features are extracted from high-dimensional datasets (73). DNA methylation data were analyzed using the AE to identify the CpG site enabling the prognosis prediction for breast cancer (74). The AE was also used to extract gene features enabling the prognosis prediction of the luminal A subtype of breast cancer (75). Denoising the AE, which results in more robustness against data noise than AE, was developed and used to extract gene patterns to predict the breast cancer prognosis (76). These unsupervised methods have displayed the potential to extract multiple features showing independent biological functions and prediction of the breast cancer prognosis.

More recently, different molecular data were simultaneously analyzed to further explore the understanding of breast cancer biology. For example, gene expression and copy number alternations were analyzed via a modified DNN algorithm, and six subgroups in HER2-positive groups were found (77). Another customized DNN was used to analyze gene expression data, and the identified biomarkers for each subtype were visualized using PCA to access their heterogeneity (78). Additionally, a hybrid method involving both clustering and DNN was used to analyze RNA-seq data (79). As conveyed in this section, these high-dimensional data were analyzed using AI-based computational approaches, which enable the extraction of biological knowledge.

Other quantitative omics data

Through proteomics, hundreds of proteins can be profiled; therefore, this technique has become popular upon the advent of high-throughput mass spectrometry. Protein-based biomarkers have been identified to detect breast cancers at early stages (80). A supervised ML method was used to integrate quantified levels of 16 proteins to distinguish breast cancer tissues with and without metastasis (81).

Metabolomics is the newest approach in omics science for the identification and quantification of hundreds of metabolites in biological samples. The concentration pattern of the observed metabolites is named the metabolomic profile and it has been analyzed via multivariate analysis methods, such as PCA and partial least squares-discriminant analysis (PLS-DA), and pathway analysis (82). The metabolomic profiles of breast cancer tissues with ER+ and ER− revealed significant differences in terms of the beta-alanine and glutamine pathways (83). A DNN was used for the analysis of this dataset and new findings were obtained, such as the difference in adenosine triphosphate (ATP)-binding cassette transporter pathways, based on the estrogen receptors (84). Biofluid samples have been frequently analyzed, and classification methods have been developed to utilize their molecular patterns. We previously quantified salivary metabolites and developed an ADTree-based model to distinguish patients with breast cancer from healthy controls (85). The dimension of the observed data produced via a single measurement instrument is less than that of gene expression data; however, the combination of these data and AI showed the potential to enable the combination of the prediction ability using multiple markers and also for extraction of biological information in various pathways.

Notably, most ML methods require feature selection, wherein only the observed variables relevant to the outcome are selected upon elimination of the lower informative variables. Feature ranking (86), Markov blanket filtering (87), and the variance inflation factor (VIF) are commonly used to assess the dependence of features to reduce multicollinearity among the observed features (88). We used them in combination to select the minimum feature sets to predict the breast cancer prognosis (89). This combination of feature selection and prediction models significantly improves the accuracy, generalization ability, and robustness against noise frequently observed in quantitative omics data.

Recently, the concept of sparseness is introduced to identify only a few features showing predictivities among a large number of observed features. Gene expression data were analyzed using sparse k-means to subgroups analyses of breast cancer data (90). The least absolute shrinkage selector operator (LASSO) and Ridge regression techniques were used to analyze gene expression data of breast cancer (91). The improvement in omics technologies enables the observation of a larger number of features, whereas these analytical technologies would contribute to reducing the problem of multicollinearity.

Discussion

This paper reviewed the recent application of ML-based technologies in clinicopathological prediction and the analyses of quantitative omics data. ML provides an evident advantage for the development of classification models: classification and regression via statistical methods are limited on several counts. Colinearity limits the number of variables that can be used in multiple logistic regression and multiple linear regressions. Moreover, these methods linearly integrate the predictable features. ML methods, however, have the potential to capture the non-linear structure of the observed data. Several classification methods, such as ANNs, also suffer from collinearity; therefore, appropriate feature selection before the use of these classification methods is necessary.

Notably, several technical issues have been raised during rigorous evaluations of the training of supervised methods. Although various performance comparisons have been reviewed, the performance ultimately depends on the parameters considered for each method, such as the number of layers and nodes in an ANN model. To optimize these parameters, the enhancement of the generalization ability should be a primary goal. Combinations of the best parameters must also be searched in large parameter space with global parameter optimization, such as via a genetic algorithm (92). However, the performance of such algorithms also depends on their parameters, and empirical optimizations are currently practical, despite the induction of subjective training risk in the model. Therefore, more rigorous validation of the developed model should be employed as compared to that in the case of conventional statistical analysis methods. In conclusion, the improvement of automatic training and validation algorithm of each ML method is still necessary but enough validated ML models have shown the potential to contribute to the diagnosis and decision of treatment of breast cancers.

This review focuses on the application of ML to clinical-pathological features and quantitative molecular profiles. However, wider applications of AI, such as natural language processing, have been developed to help the decision-making of oncologists for diagnosis and treatment. A recent review in this field pointed out the need for standardization of benchmark tests and a variety of processed reporting before the use of developed methods in the clinical setting (15). Another review to introduce the application of ML on chronic diseases also requires the standardization of the evaluation metrics to determine ML performance and also data governance which realizes unbiased and objective data storage from the patients (13). A review of DL-based image-processing also claimed the need for reporting standardization even though the accuracy performance is equivalent to that of healthcare professionals (14). These problems are common for the topics dealt with in this review; accuracy and validation of ML algorithms, data management, objective evaluation criteria, and informative reporting, are necessary to assist the clinicians.

As a limitation, we did not cover all AI topics for breast cancer diagnosis and prognosis prediction in this review. The topics were limited to the application of ML on clinical-pathological features and quantitative omics. Especially, multi-gene assays have been already evaluated in the prospective clinical trials. Oncotype DX was validated in TAILORx, RxPONDER, and MINDACT clinical trials and analyzed to identify the beneficial patients to adjuvant chemotherapy (58,93-95). For example, the integrated use of clinical features based on tumor size and histologic grade to Oncotype DX enabled more precise identification of beneficial patients to adjuvant chemotherapy (96). Accumulation of these analytical results enables these tools to influence clinical decision-making in breast cancer treatment (97). However, the recent AI-based electronic health records found the need for standardizing the eligibility criteria on cancer trial population and there are still difficulties in obtaining robust analytical results for non-cancer diseases (98). Currently, real-world populations are unable to participate in clinical trials because of stringent exclusion criteria, but many patients receive treatment (98). Thus, the development of robust and versatile ML-based analytical tools is still necessary to fill in the gap so the wider patient base would receive the benefit of diagnosis and treatment therapy.

Acknowledgments

Funding: This work was supported by a Grant-in-Aid for Scientific Research (Grant No. 20B205).

Footnote

Provenance and Peer Review: This article was commissioned by the editorial office, Annals of Breast Surgery for the series “Cutting-edge Surgical Research”. The article has undergone external peer review.

Reporting Checklist: The authors have completed the Narrative Review reporting checklist. Available at https://abs.amegroups.com/article/view/10.21037/abs-21-63/rc

Peer Review File: Available at https://abs.amegroups.com/article/view/10.21037/abs-21-63/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://abs.amegroups.com/article/view/10.21037/abs-21-63/coif). The series “Cutting-edge Surgical Research” was commissioned by the editorial office without any funding or sponsorship. MS reports that this work was supported by a Grant-in-Aid for Scientific Research (Grant No. 20B205). MT served as the unpaid Guest Editor of the series and serves as an unpaid editorial board member of Annals of Breast Surgery from July 2018 to June 2024. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
